The 24V DC brushless low-voltage vibration motor is adopted to ensure safe production. The amplitude of the vibration motor can be adjusted according to the aspect ratio. The 485 communication output computer monitoring is used to monitor the motor operation parameters for all-round real-time monitoring, real-time fault alarm, and intelligent control is realized.
Power system
High-frequency water-cooled dual output synchronous rectifier is used, and the fire bull line is placed on both sides to ensure the consistent current output at both ends, reduce the heat generation of the fire bull line, and improve the uniformity of the plated plate.
Automatically add system
Use a new measuring cup-type addition to replace the traditional addition system to ensure the accuracy of adding potions.
Process capability
Uniformity cov≤10%, conventional plate depth capability TP≥85%, minimum hole 0.15mm, aspect ratio 10; 1, extreme difference is within 8um.
Introduction to roller plating equipment:
·Large batch electroplating processing for electronic and small hardware
·PLC microcomputer is automatically controlled, and it runs accurately and reliably.
·The polyester mesh is used as the mesh basket wall, which is very small and does not leak easily, and can improve the conversion efficiency of the electroplating solution.
·The drum uses PP and PVC die-casting materials
·The drum rotating transmission can be used for whole-line chain transmission or whole-line and self-rotation transmission.
·The walking horizontal wheel uses ladle polyurethane, which makes it smooth and does not slide
·Acid and alkali-resistant belt lift to reduce oil pollution in the production line
Equipment Features:
Suitable for the production of various types of fine parts, including galvanized, copper plating, nickel, tin and gold plating. The roller plating wire realizes automatic loading device and automatic weighing system. Full-line industrial control computer control can realize product recording, automatic roller switch cover, automatic online centrifugal drying, automatic passivation and hydrogen removal.

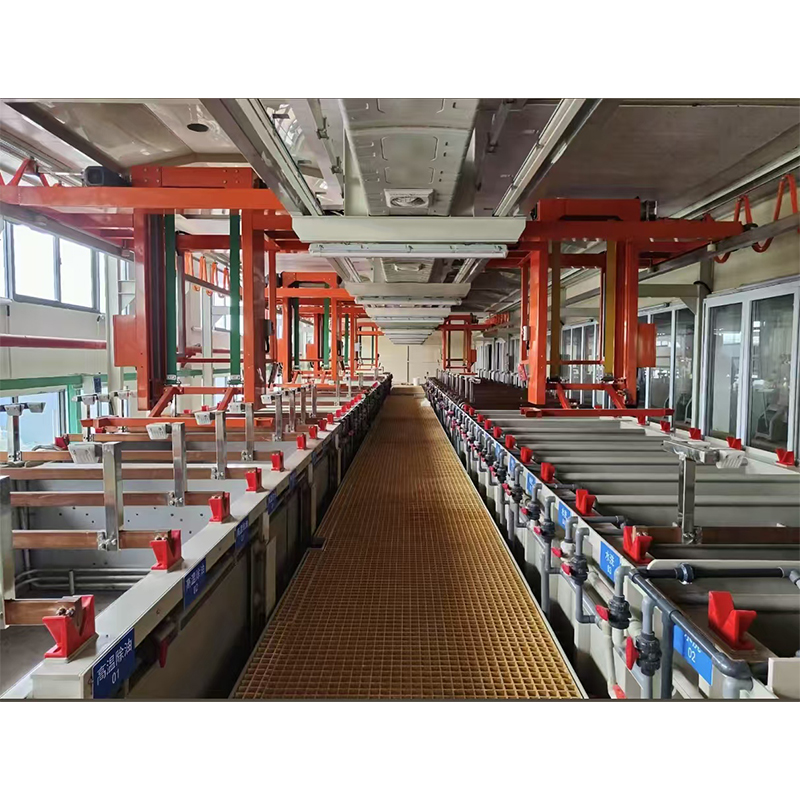

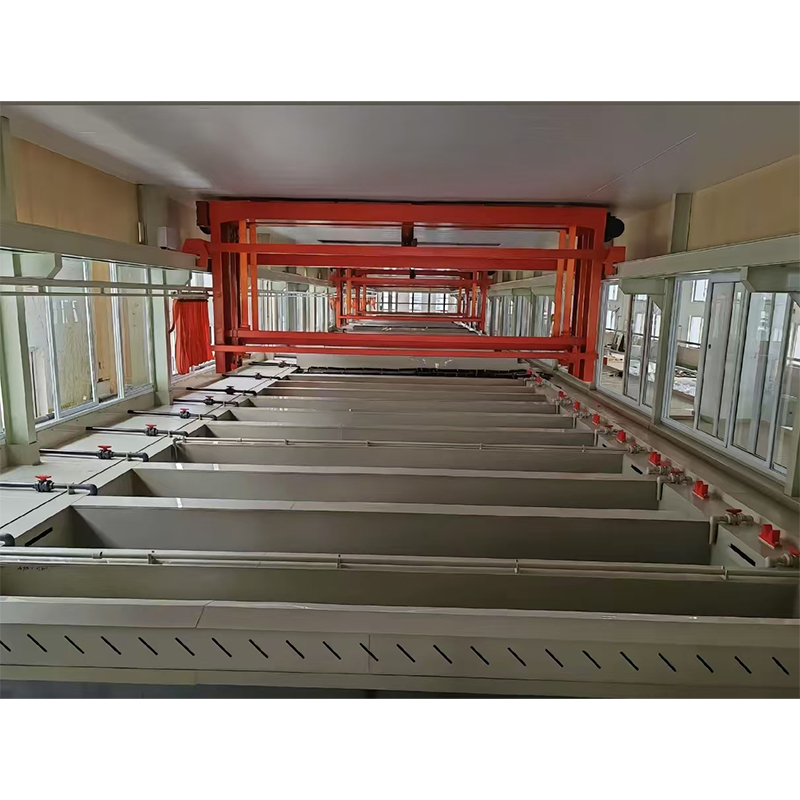

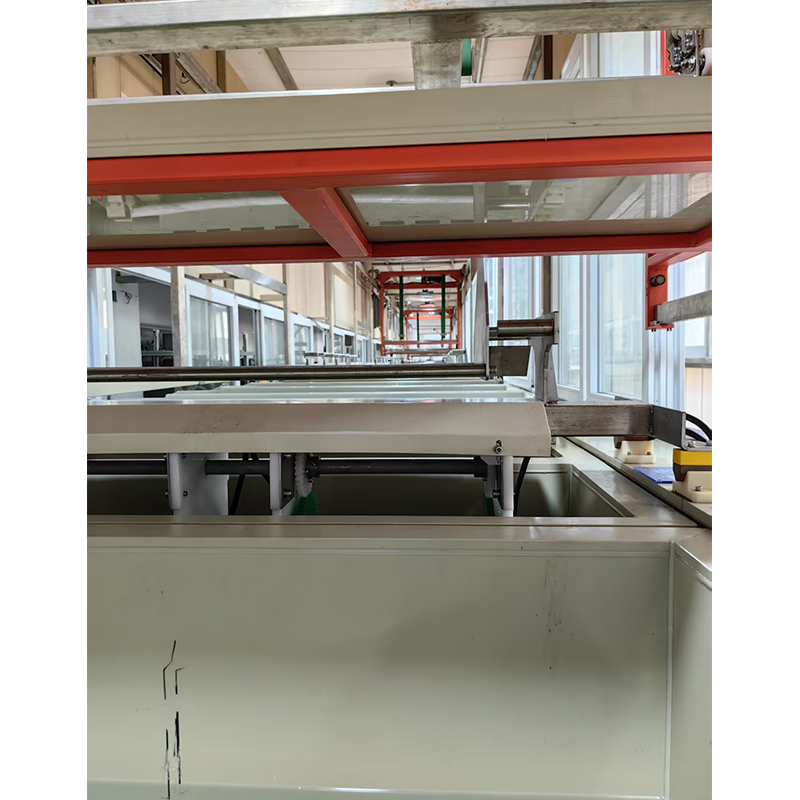

Hanging and plating production line
The hanging plating production line is suitable for electroplating of all kinds of parts; during electroplating, the current density of a single piece is high and will not change with time, the slot voltage is low, the temperature rises slowly, the belt output is small, and the uniformity of the plating parts is good; but the productivity is low, and the maintenance volume of equipment and auxiliary equipment is large.
Rolling plating production line
The advantages of the roller plating production line are that it saves labor, improves productivity, has less equipment maintenance costs and small footprints, and has good uniformity of the plating layer. However, the range of use of roller plating is limited, and the plated parts should not be too large or too light. The single piece has a small current density, low current efficiency, high tank voltage, fast temperature rise in tank liquid, and large amount of plating liquid.

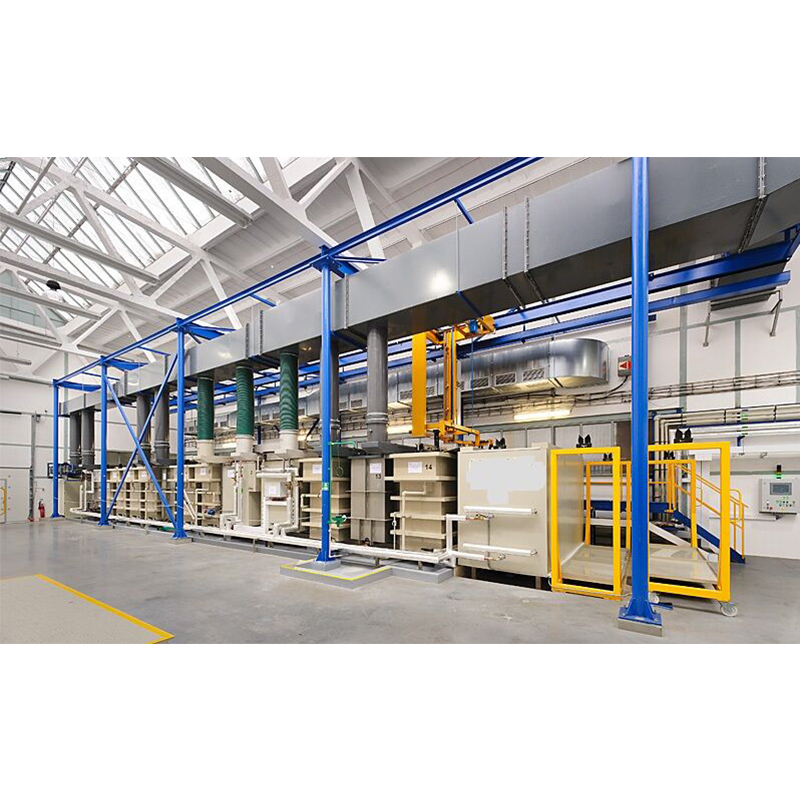

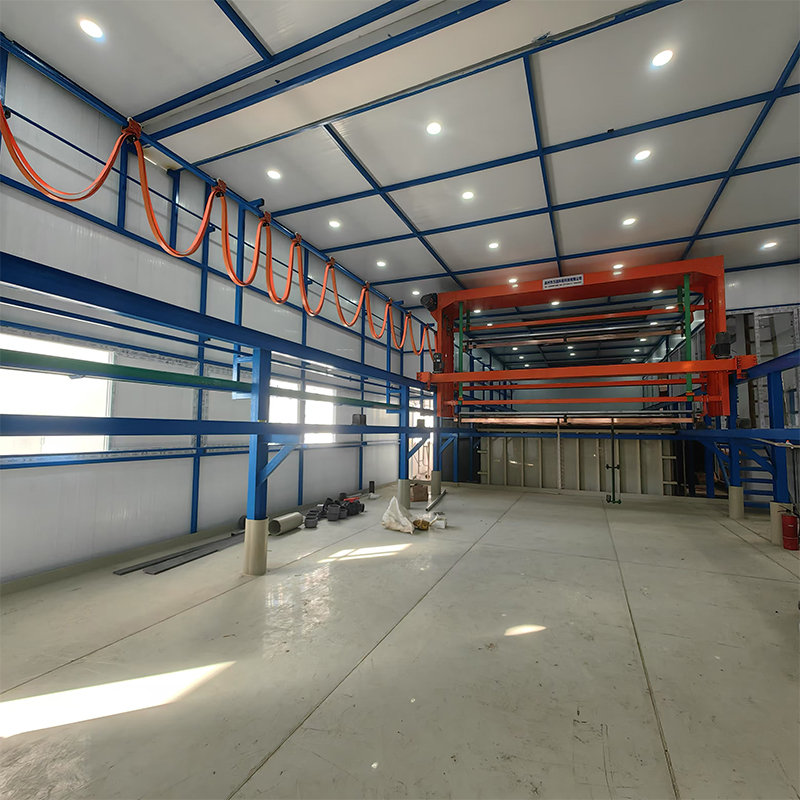

Automatic hanging plating and electroplating equipment: It is suitable for galvanizing, nickel plating, chrome plating, anodizing, plastic plating, etc. of objects with larger shapes. The production process can be automated through PLC, PC, and touch screens, saving manpower and greatly improving production efficiency.
